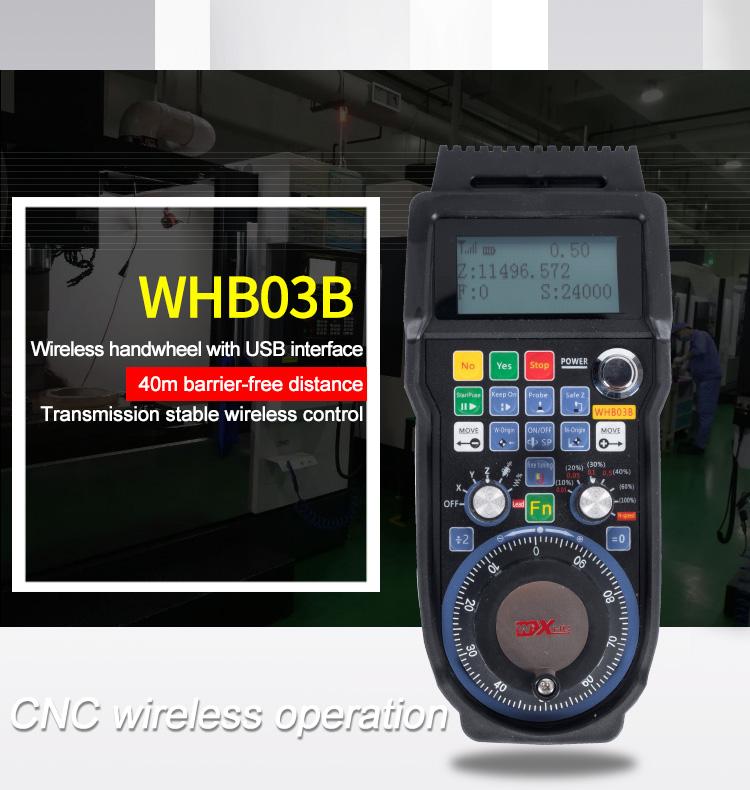

V8 engraving machine wireless MPG-WHB03B
Auther: Pubdate:2020-07-31

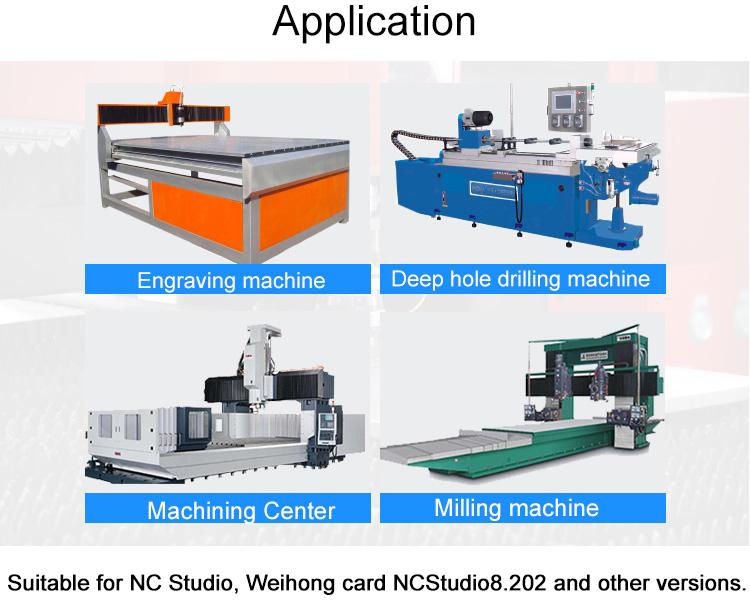

1、Applications

     application on ncstudio cnc system.such as ncsutido8.202 etc.

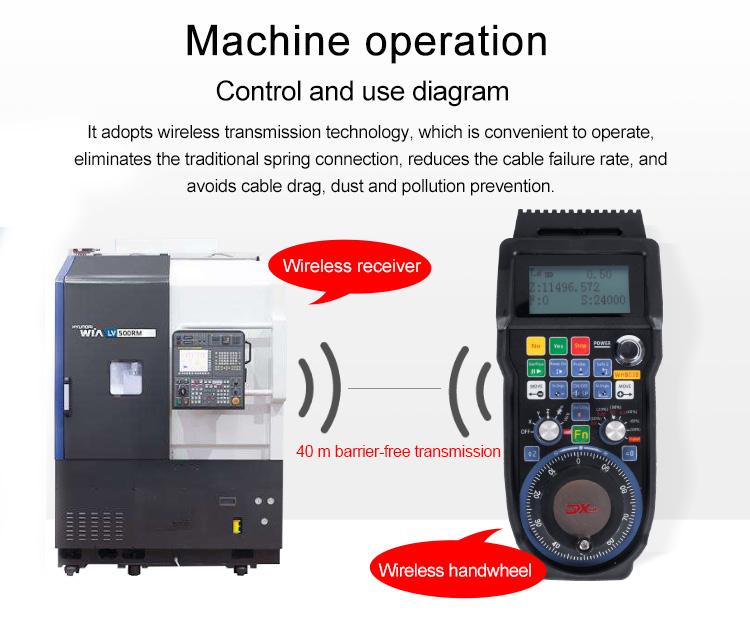

2、Application circut

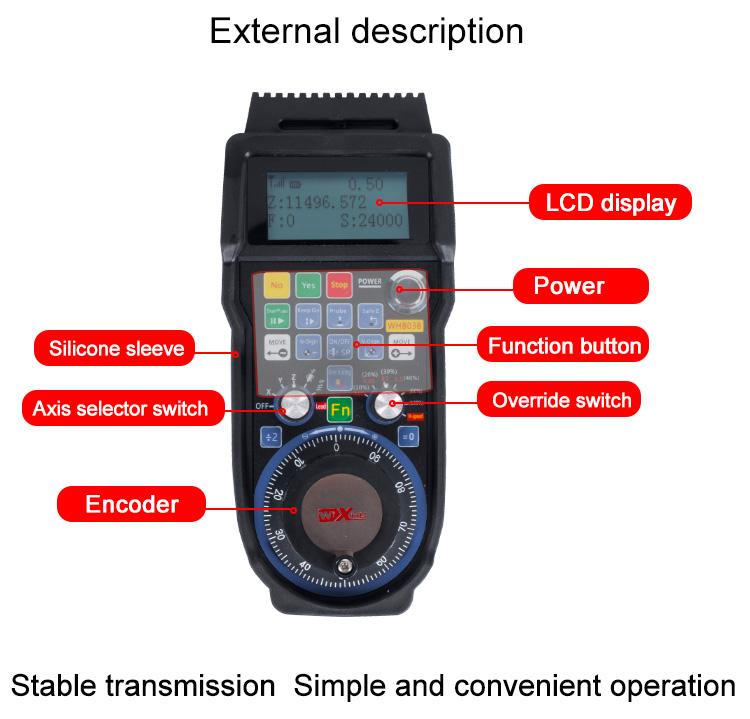

3、Product Overview


4、Key feature



1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2 Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
3.Reliable and Stable Performance
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS/PC MPG is anti-impact and heat-resistant.
4.Display the X Y Z axis work and machine coordinate data.
The lcd display data with background light.
Display the current work state of the cnc system.


5、General Characteristics

Parameter Description
Frequency bands ISM,433MHZ
Supply voltage 2 AA batteries
Wireless transmission distance 40 meter
MPG Encoder 100PPR
Function Key 13 Keys
RF TX power 10DB
Receiver sensitivity -98DB
LCD 128*68 Dot LCD with background
Material ABS、PC、aluminium




6、Attachments

WHB03B Wireless MPG 1piece
Handle 1piece
USB receiver 1piece
Hook 1piece
Package box size 220*168*60mm
Weight 0.65KG
