Basic MPG wireless electronic

Normal wireless handwheel -BWGP

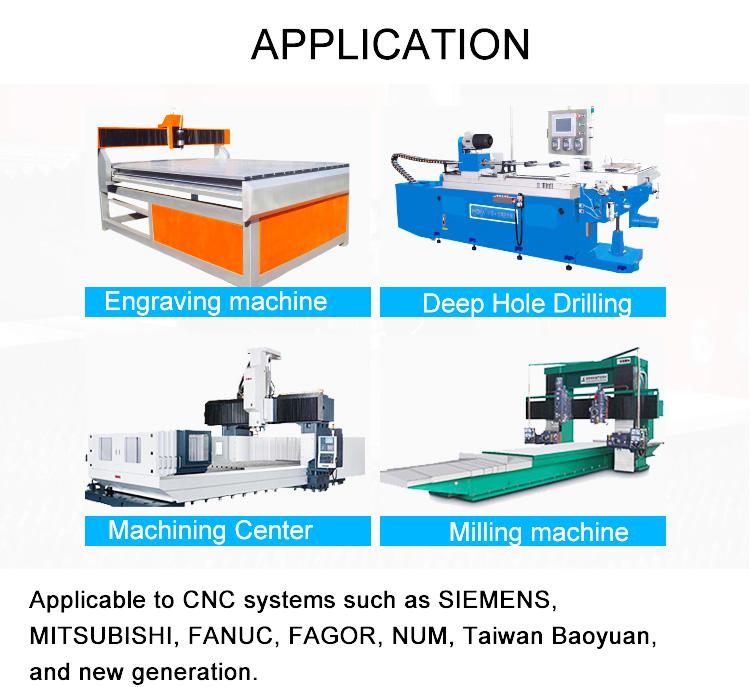

1、Applications



BWGP has 2 series:
1、BWGP03-5-AA(Aluminium):The MPG material is Aluminium
2、BWGP01-5-AA(Black):The MPG material is ABS



They could be used in Germen (SIEMENS)、Japanese(MITSUBISHI)、France(FANUC)、Spain(FAGOR)、France NUM、Taiwan LNC、SYNTEC CNC system.

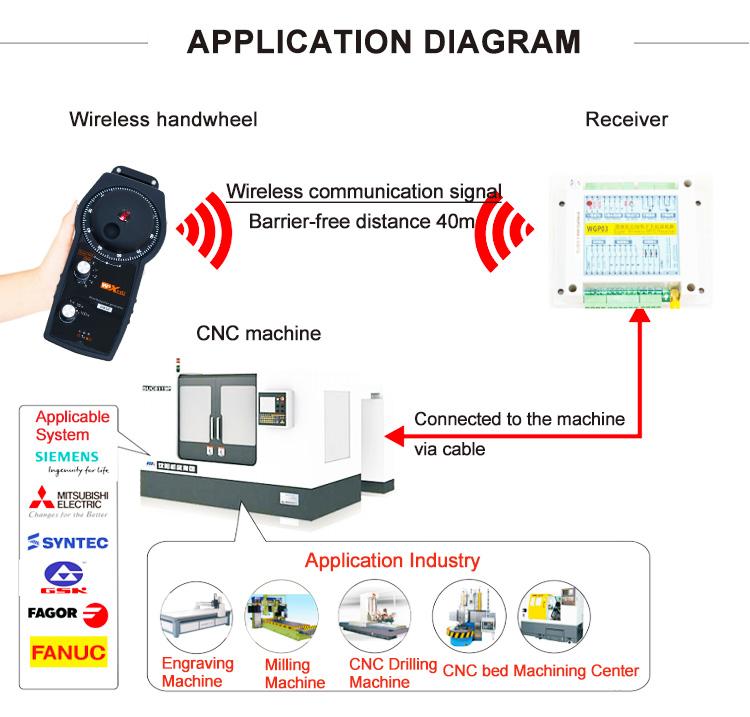

2、Application circut

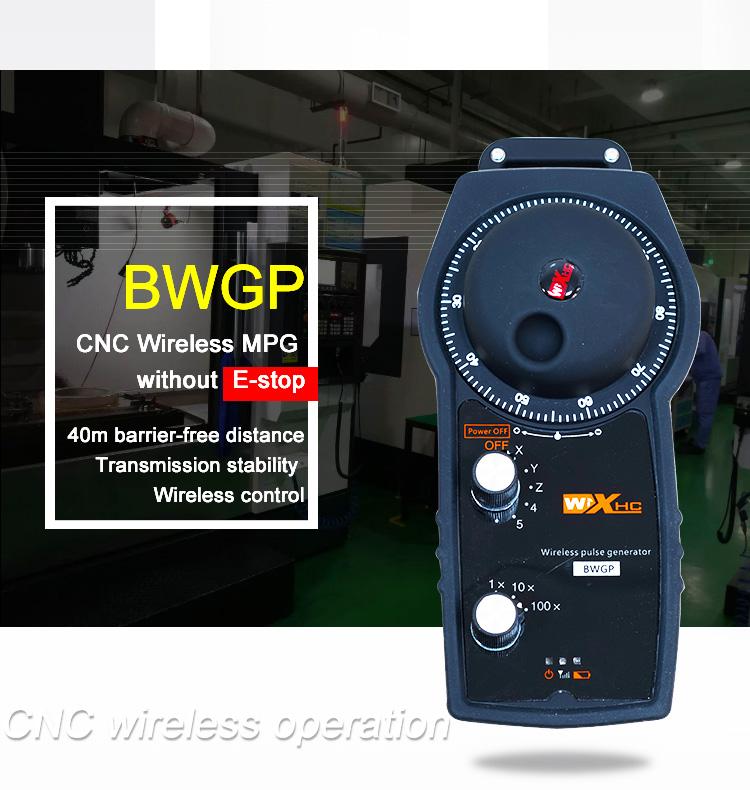

3、Product Overview



4、Key feature

1 .Auto Frequency Hopping When Noise.
    Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
    32 hopping channels,the channel frequency gap is 1Mhz.
    the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
    32 sets of wireless MPG could be used at the same time in one room.
2 Axis/Step band switch
    To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
3 Reliable and Stable Performance
    Low power feature,the life is longer than 2 months with 2 AA batteries
    The wheel gear of aluminium MPG is clear,the position is accurate


5、General Characteristic

Parameter Description
Frequency bands ISM,433MHZ
Frequency bands 2 AA batteries
Wireless transmission distance 40 meter
MPG Encoder 100PPR
Output power 10DB
Receiver sensitivity -98DB
Maximum axis 5 axis
Material ABS、PC、 aluminium



 6、Attachments

BWGP Wireless MPG 1piece
Handle(only BWGP01-5-AA with) 1 piece
Wireless Receiver 1 piece
Hook 1 piece
WGP Manual 1 book
Package box size 265*135*78mm
Weight 0.87kg
