Welding manipulator remote control-DH01
Auther: Pubdate:2018-12-06

1、Applications

Suitable for welding manipulator.

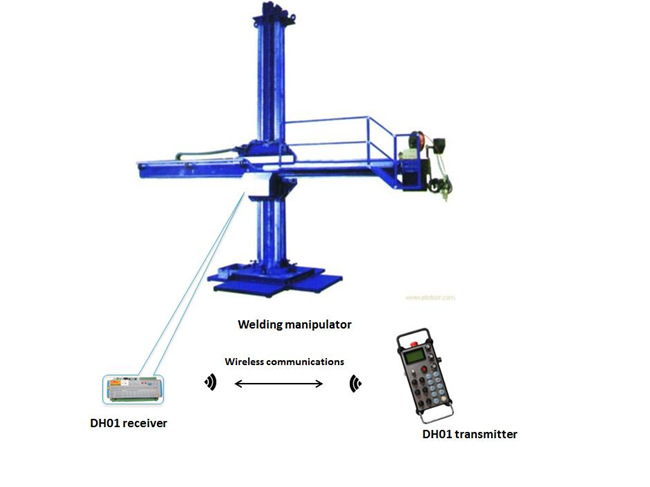

2、Application circut

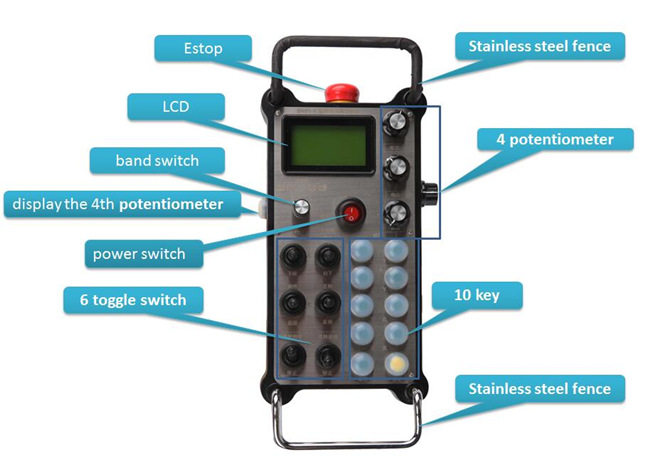

3、Product Overview


4、Key feature

1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.

2 stable and reliable performance
Industrial grade design, dust, oil proof design.
With industrial grade design, dust, oil proof design.

3 Low power feature
the life is longer than 3 months with 3 AA batteries

4 LCD display
The lcd display data with background light.Display the current work state of the cnc system.


5、General Characteristics

Parameter Description
Frequency bands/td> ISM,433MHZ
Supply voltage 3 AA batteries
Wireless transmission distance 40 meter
Function Key 11 key
RF TX power 10DB
Receiver sensitivity -98DB
Material ABS、PC、aluminium

6、Attachments

DHO1 Wireless device 1piece
Wireless receiver 1piece
receiver antenna 1piece
isolated power 1个
Package box size 390*345*83mm
Weight 3kg
