welding roller frame remote control-DH02S
Auther: Pubdate:2018-12-06
1、Applications
    Suitable for welding roller frame

2、Application circut
2

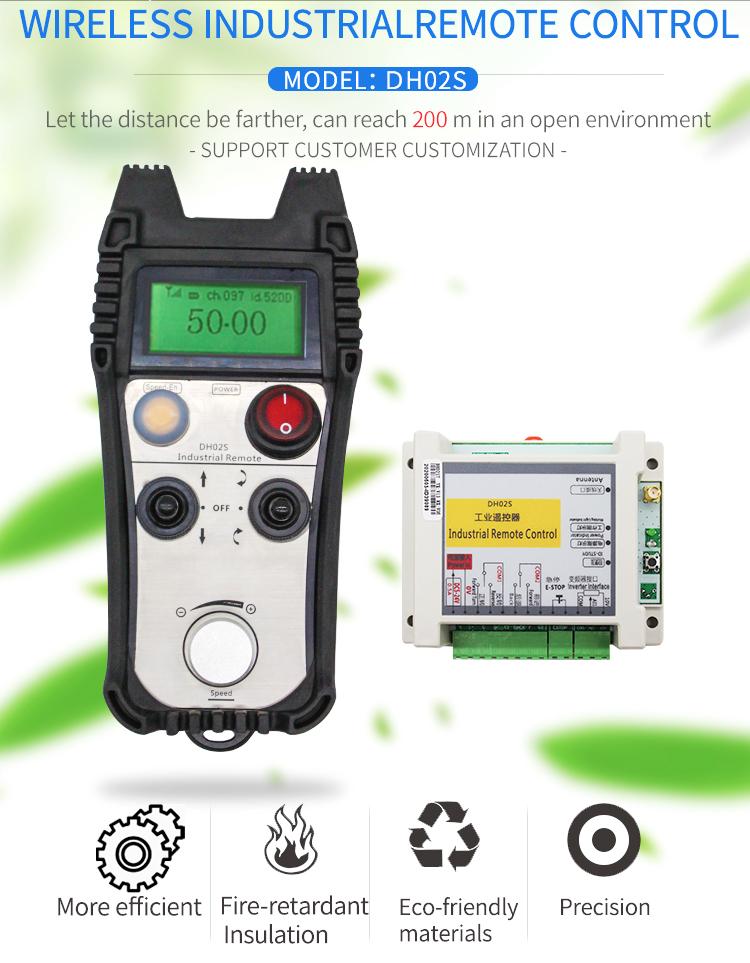

3、Product Overview

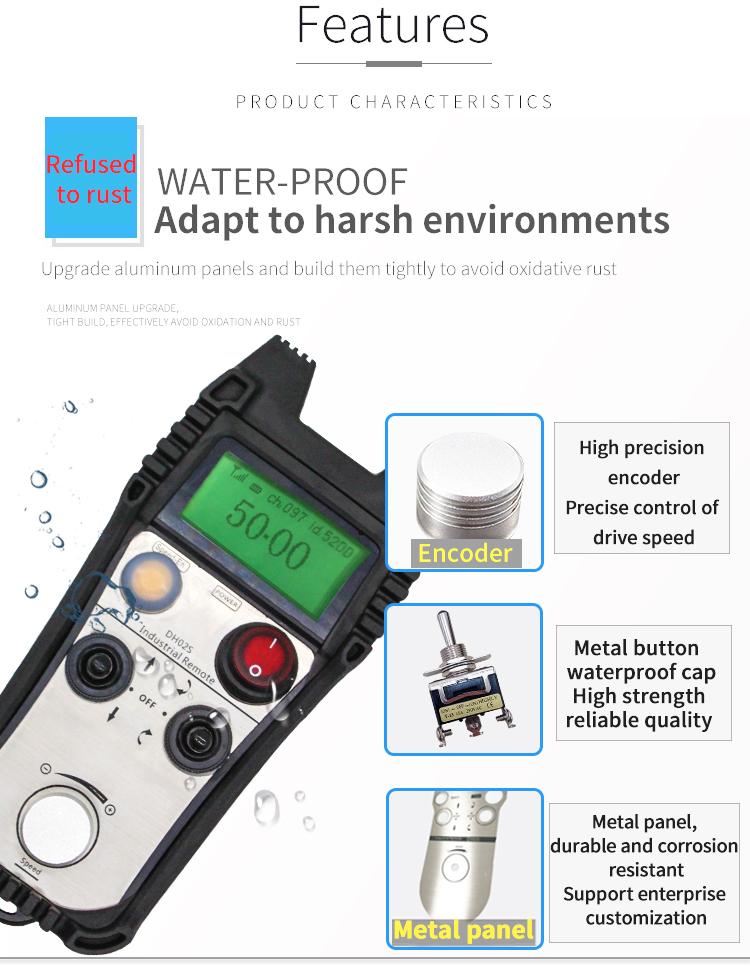

4、Key feature
1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2 Reliable and Stable Performance
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS/PC MPG is anti-impact and heat-resistant.
3 Estop Function
To improve work effiency and assure safety.
4 LCD display
The lcd display data with background light.Display the current work state of the cnc system.

5、General Characteristics
Parameter Description
Frequency bands/td> ISM,433MHZ
Supply voltage 2 AA batteries
Wireless transmission distance 40 meter
Function Key 1 key
MPG Encoder 50PPR
RF TX power 10DB
Receiver sensitivity -98DB
Material ABS、PC、aluminium

6、Attachments
DHO2 Wireless device 1piece
Wireless receiver 1piece
Wiring row 2piece
DH02  manual 1book
Package box size 235*225*85mm
Weight 1kg
