wireless MPG-CWGP
Auther: Pubdate:2020-07-31

1、Applications

They could be used in Germen (SIEMENS)、Japanese(MITSUBISHI)、France(FANUC)、Spain(FAGOR)、France NUM、Taiwan LNC、SYNTEC CNC system.


2、Application circut

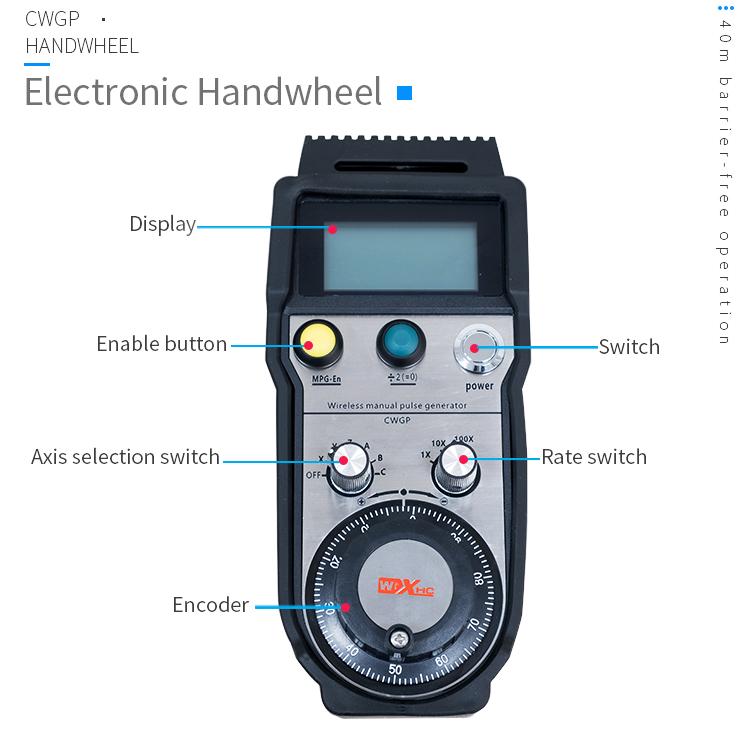

3、Product Overview


4、Key feature

1 .Auto Frequency Hopping When Noise.
    Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
    32 hopping channels,the channel frequency gap is 1Mhz.
    the transmission is encrypted, auto build communication network and pair. auto hopping when noise.

2 with LCD Display
    Display the increased work coordinate,the current axis and step position
3 Axis/Step band switch
    To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4 Reliable and Stable Performance
    Low power feature,the life is longer than 2 months with 2 AA batteries
    The wheel gear of aluminium MPG is clear,the position is accurate
    The ABS MPG is anti-impact and heat-resistant.


5、General Characteristics

Parameter Description
Frequency bands ISM,433MHZ
Supply voltage 2 AA batteries

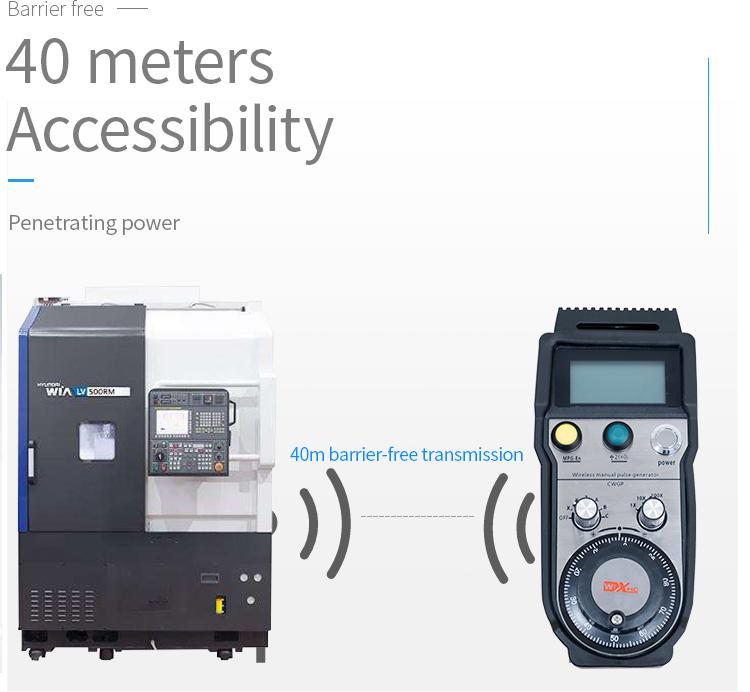

Wireless transmission distance 40 meter
MPG Encoder 100PPR
Function Key 2 Keys
Output power 10DB
Receiver sensitivity -98DB
Maximum axis 5axis
LCD 128*68 dot,with background light
Material ABS、PC、 Aluminium

、 6、Attachments

CWGP Wireless MPG 1 piece
Handle 1 piece
Wireless receiver 1 piece
WGP manual 1 book
Package box size 235*225*85mm
Weight 0.9kg
