CNC Mach4 motion control card MKX-M4
Auther: Pubdate:2018-12-19

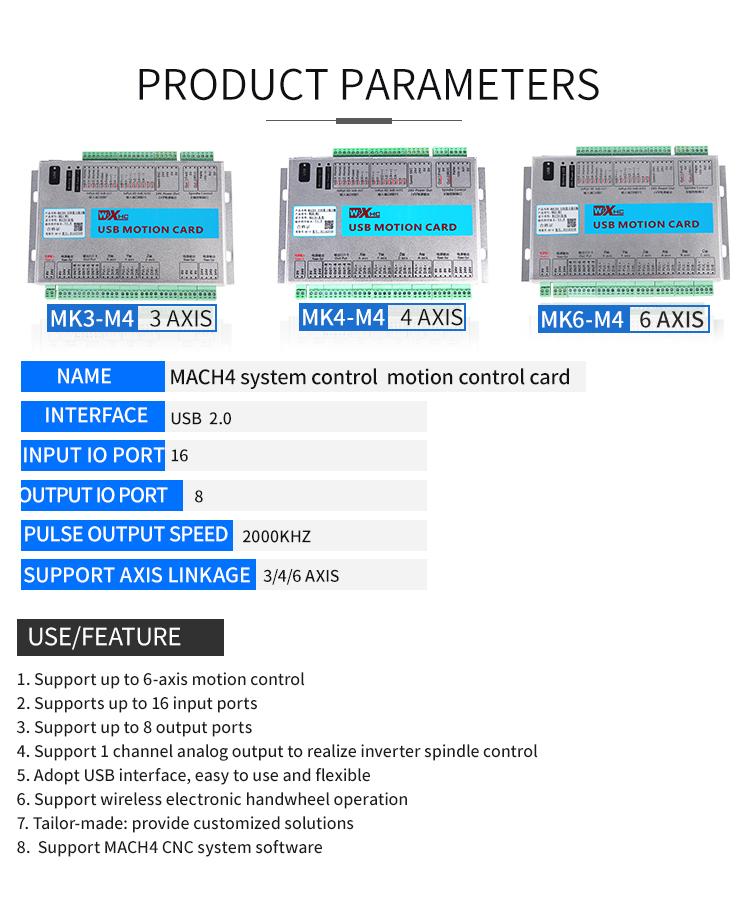

1、Applications

     MKX-M4 has 3 series:
        1. MK3-M4:3 axis motion card.
        2. MK4-M4:4 axis motion card.
        3. MK6-M4:6 axis motion card.
     works with Mach4 CNC system under all windows platform

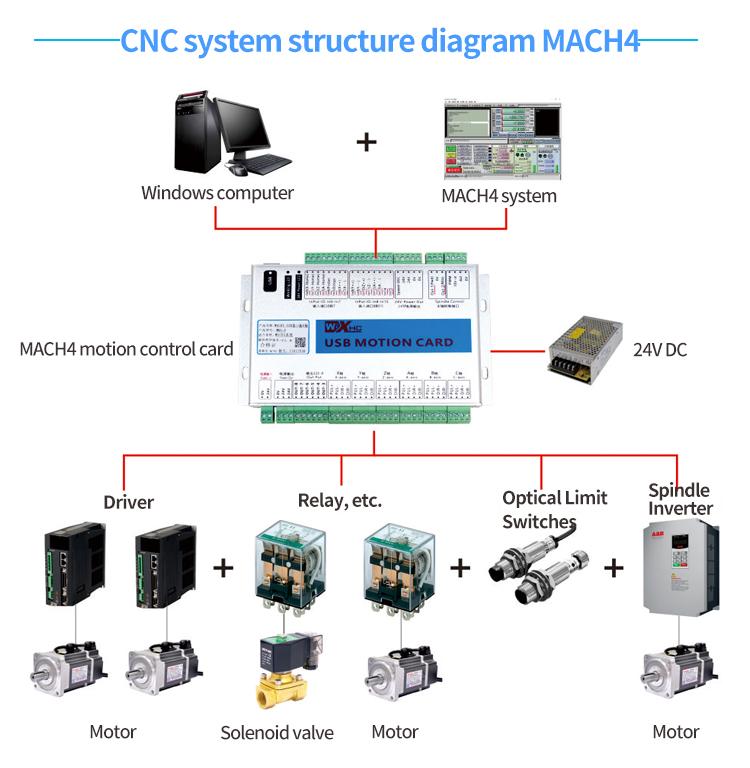

2、Application overview


3、Product overview




4、Signal connection


5、Key feature

1.Supporting Mach4 Hobby version
2.Support spindle speed feedback
3.Full support for USB hot-swappable, the card is Monitoring USB connection status at any time.
4.Supports Up 6-axis,support differential output Maximum step-pulse frequency is 2000KHz
5.Status indicator LED can be useful to show the USB connection, and working status by flashing.
6.16 general-purpose input
7.has speed function, the spindle actual speed Mach4 interface in real-time display
8.all IO-port isolation, interference, stable performance



6、General Characteristics

Parameter Description



Axis drive control:



 Isolated oc output  Voltage:5V,maximum load :20A
 type STEP/DIR
 Maximum Step frequency  2000KHZ
 Number of support axis MK3-M4:3 axis
MK4-M4:4 axis
MK6-M4:6 axis
Spindle control  Analog output voltage  0-10V
 Digital PWM output  5V,1KHZ,fill factor:%1-100%
 STEP/DIR Minimum frequncy:15Hz
Maximum frequncy:4KHz
8 digital output  Maxmimum load of output line  50mA
 Maxmimum voltage on out line  25V
16 digital input Maxmimum load of input line  5mA
maximum voltage on input line  25V
 PC connection  Standard USB2.0

7、Attachments

MKX-M4 motion card

1 piece

Use wire 1 piece
Driver disk 1 disk
MACH4-USB trouble shooting 1 book
MACH4 config and driver installation 1 book
MKX –M4 user Manual 1 book
Package box size 275*144*42mm
weigtht 0.7KG
