CNC wirless handwheel -CTWGP
Auther: Pubdate:2021-11-30
1、Applications

 They could be used in Germen (SIEMENS)、Japanese(MITSUBISHI)、France(FANUC)、Spain(FAGOR)、France NUM、Taiwan LNC、SYNTEC  CNC system.

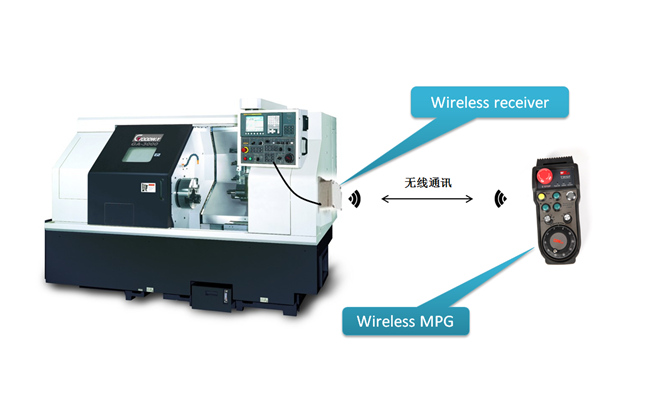

2、Application circut

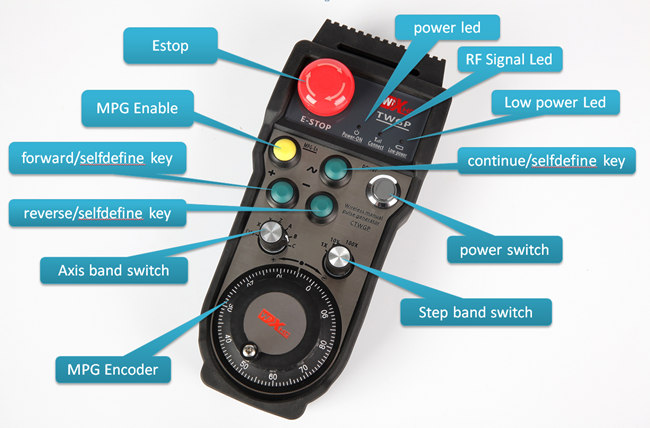

3、Product Overview




4、Key feature
1 Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
2.4G wireless transmission,the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2 Estop Function
To improve work effiency and assure safety.
3 Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4 Reliable and Stable Performance
Low power feature,the life is longer than 2 months with 2 AA batteries
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS MPG is anti-impact and heat-resistant.


5、General Characteristics
Parameter Description
Frequency bands ISM,433MHZ
Supply voltage 2 AA batteries
Wireless transmission distance 40 meter
MPG Encoder 100PPR
Function Key 5 Keys
Output power 10DB
Receiver sensitivity -98DB
Maximum axis 6 axis
Material ABS、PC、 aluminium

     6、Attachments
CTWGP Wireless MPG 1 piece
Handle 1 piece
Wireless receiver 1 piece
antenna 1 piece
WGP manual 1 book
Package box size 290*205*63mm
Weight 0.9kg
