enhanced type wireless MPG-AWGP-3
Auther: Pubdate:2020-07-31

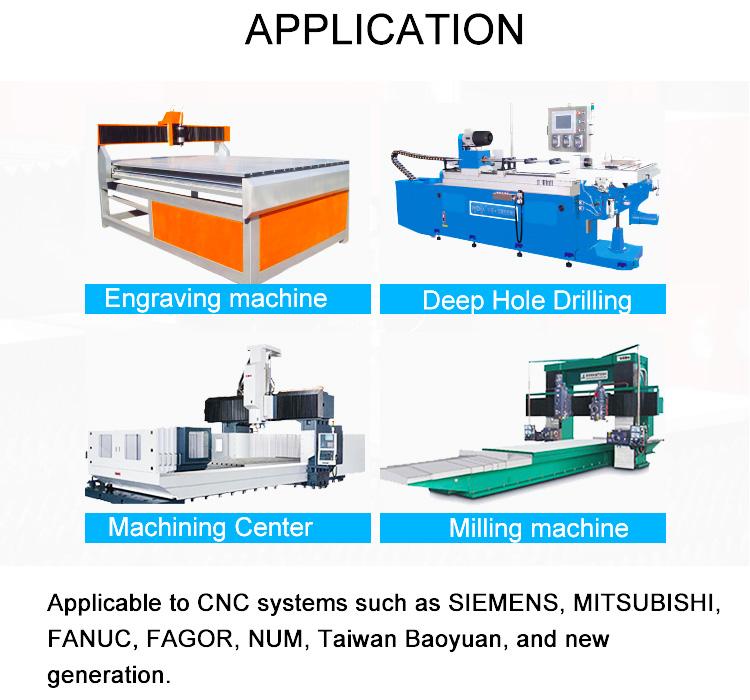

1   Applications

     They could be used in Germen (SIEMENS)、Japanese(MITSUBISHI)、France(FANUC)
     Spain(FAGOR)、France NUM、Taiwan LNC、SYNTEC CNC system

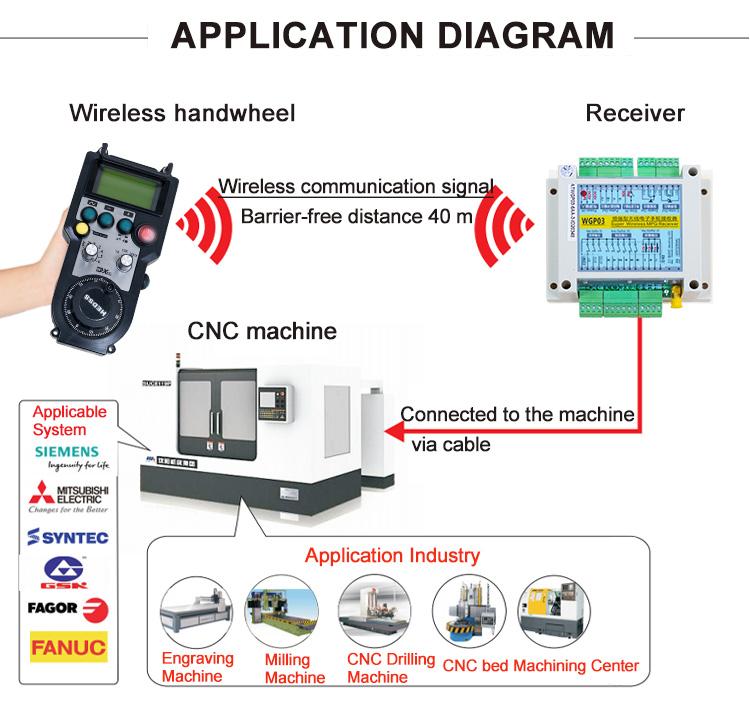

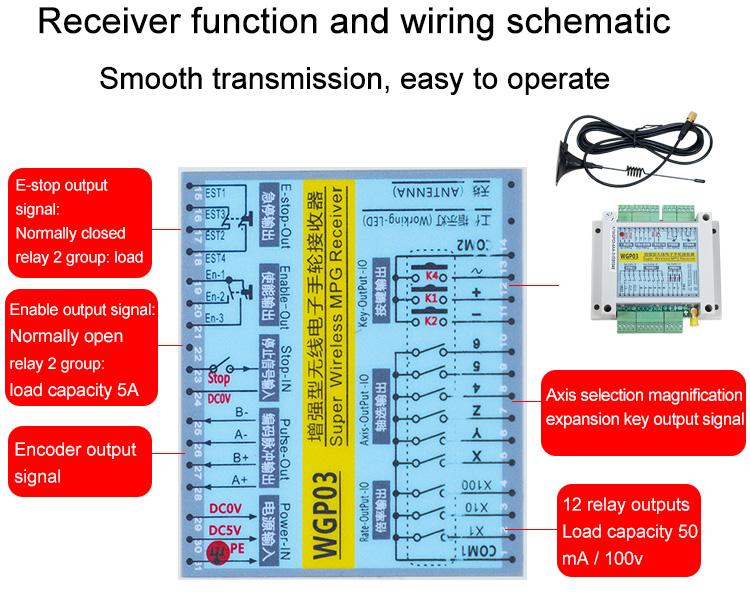

2   Application circut

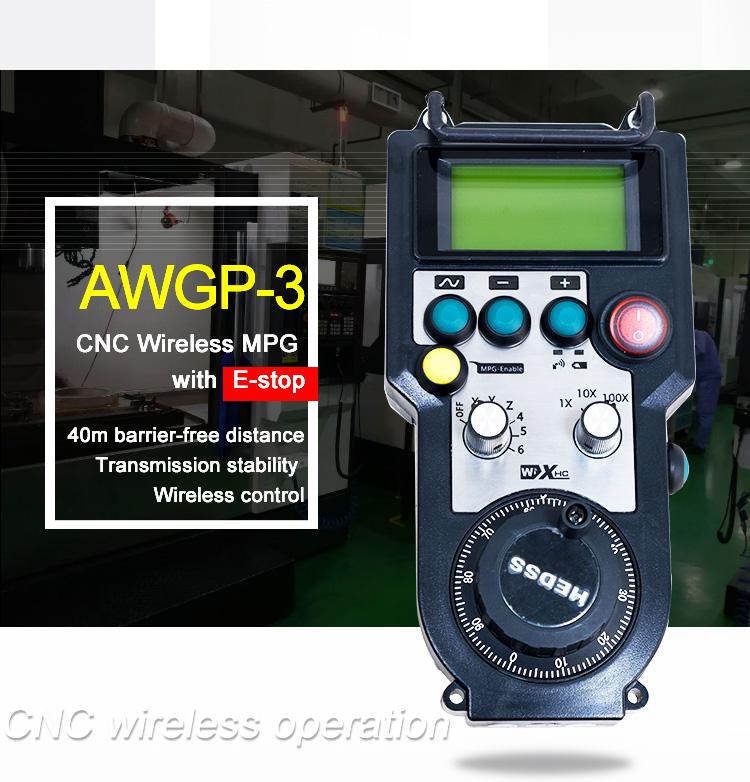

3   Product Overview

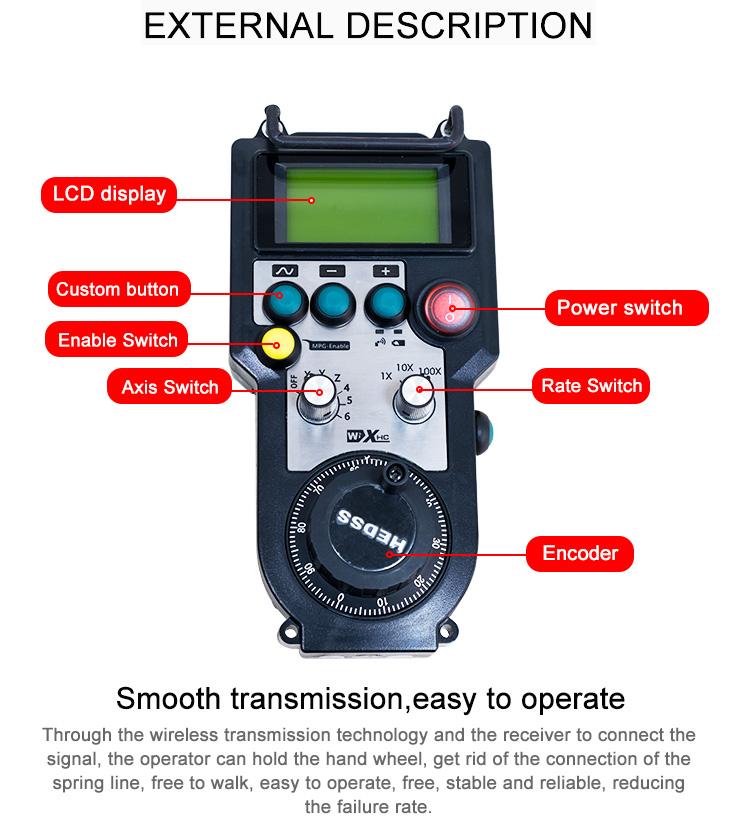

4   Key feature

 1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.

2 Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.

3 Reliable and Stable Performance
Low power feature,the life is longer than 2 months with 2 AA batteries
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS MPG is anti-impact and heat-resistant.

4 enable key
the enable key is used to enable the mpg for safety.

5 LCD display
The lcd display data with background light.Display the current work state of the cnc system.

5  General Characteristics

Parameter Description
Frequency bands ISM,433MHZ
Supply voltage 2 AA batteries
Wireless transmission distance 40 meter
MPG Encoder 100PPR
Function Key 5 keys
Output power 10DB
Receiver sensitivity/td> -98DB
Maximum axis 6 axis
LCD 128*68 dot,with background light
Material ABS、PC、 Aluminium

 6 Attachments

AWGP Wireless MPG 1 piece
Handle 1 piece
Wireless receiver 1 piece
Receiver antenna 1 piece
Wiring row 2 piece
hook 1 piece
AWGP manual 1book
Package box size 235*225*68mm
Weight 1.0kg
